Our Equipment
We have state-of-the-art specialized equipment to ensure maximum efficiency in every industrial maintenance operation.

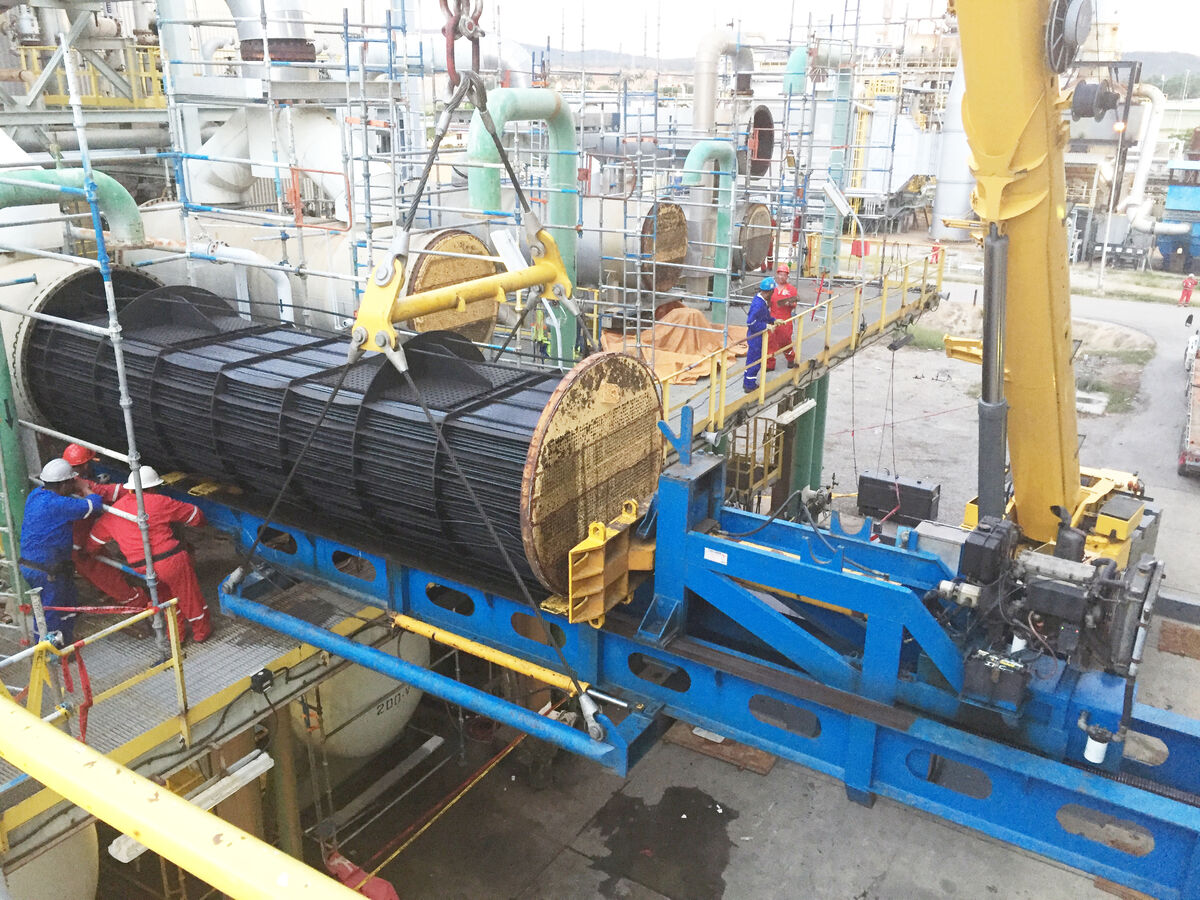

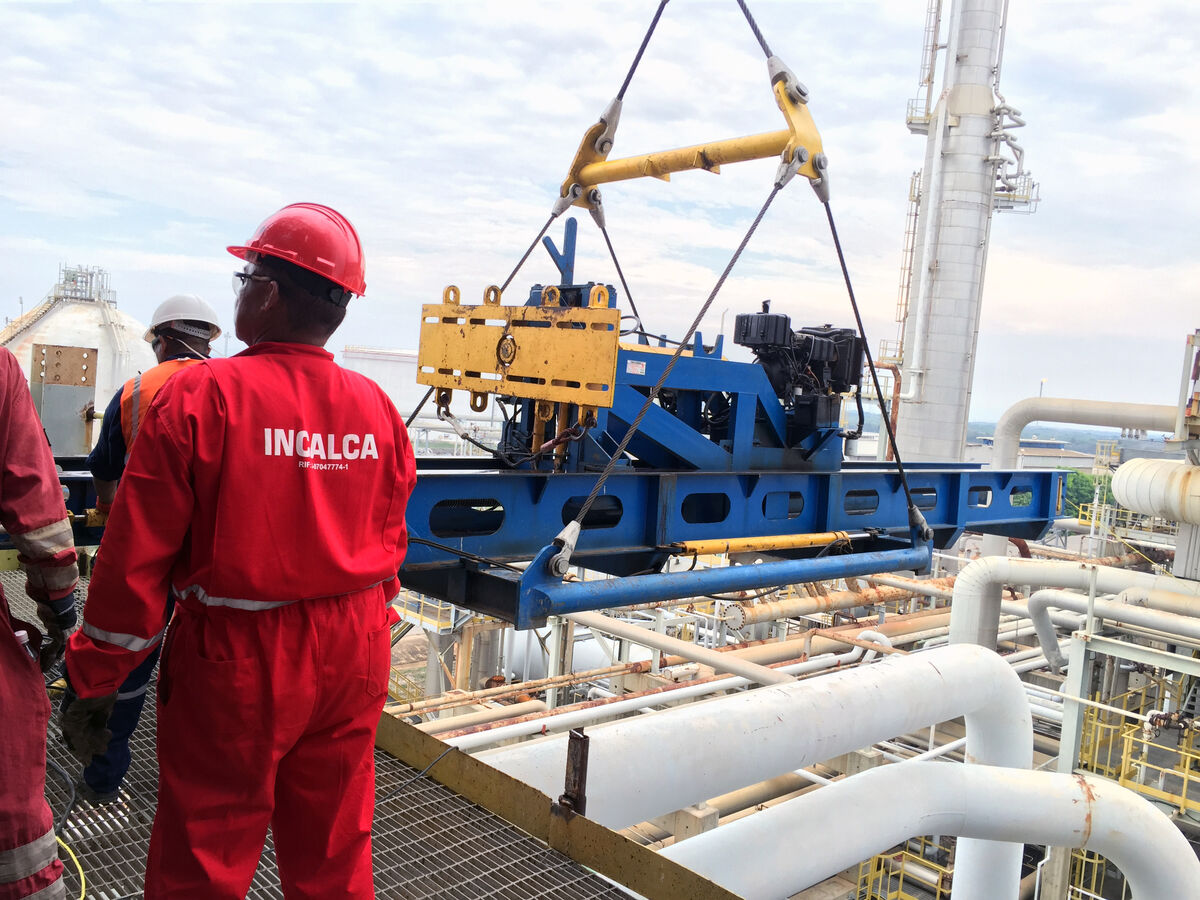

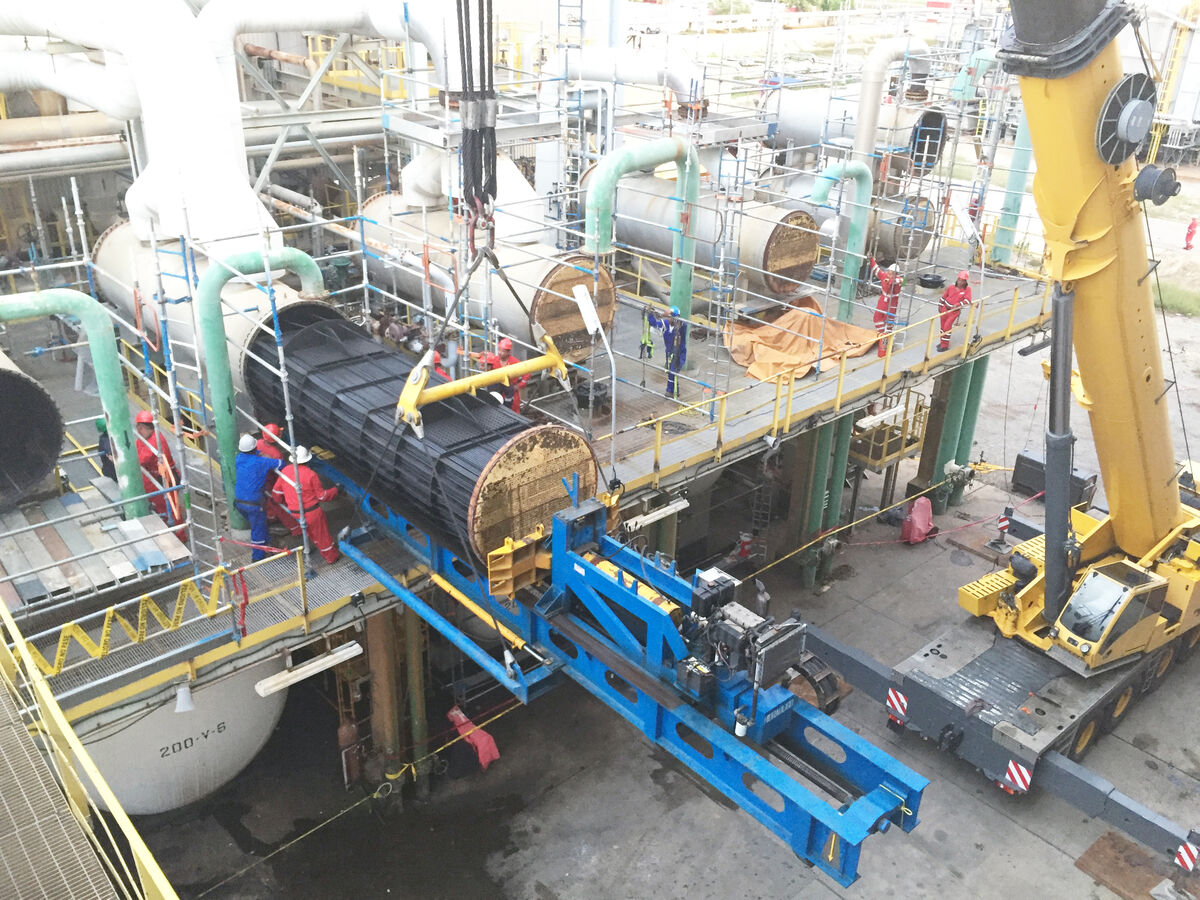

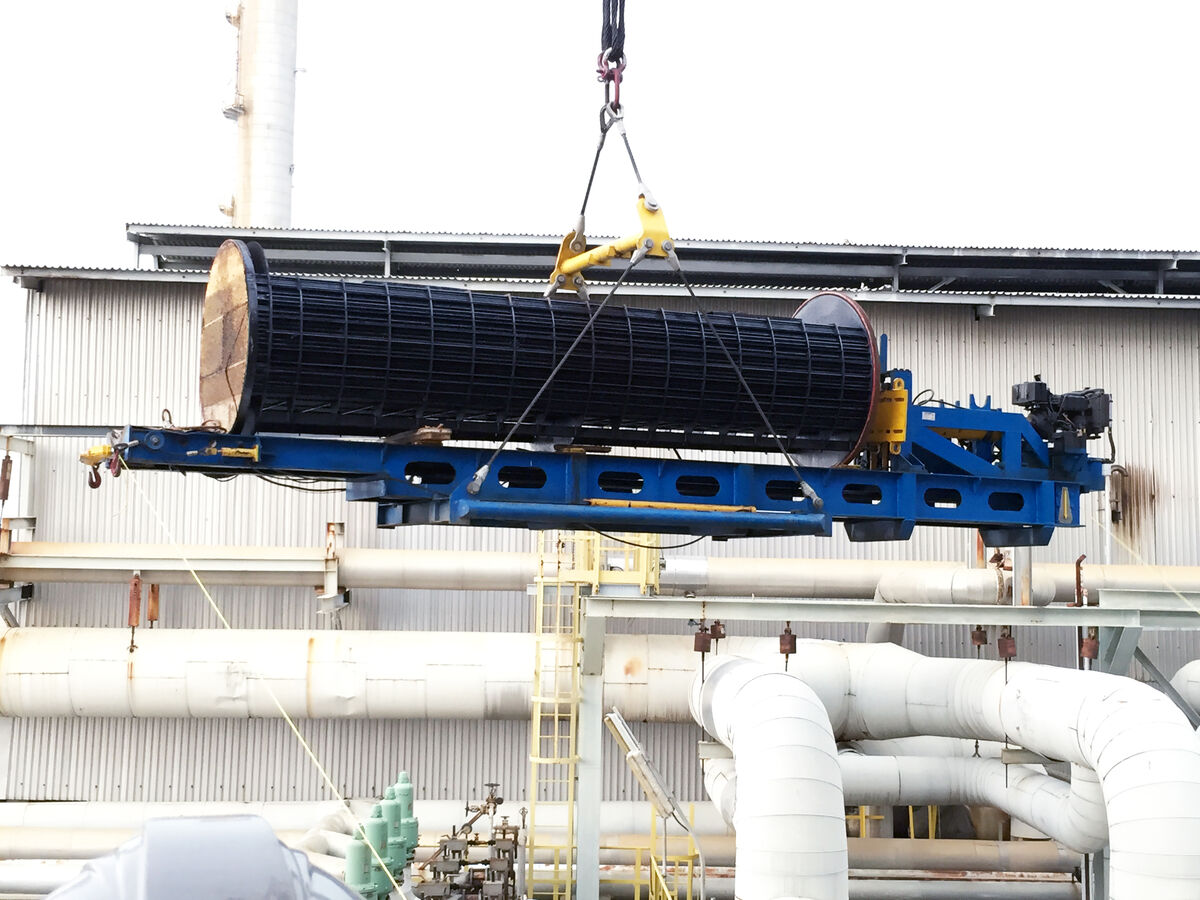

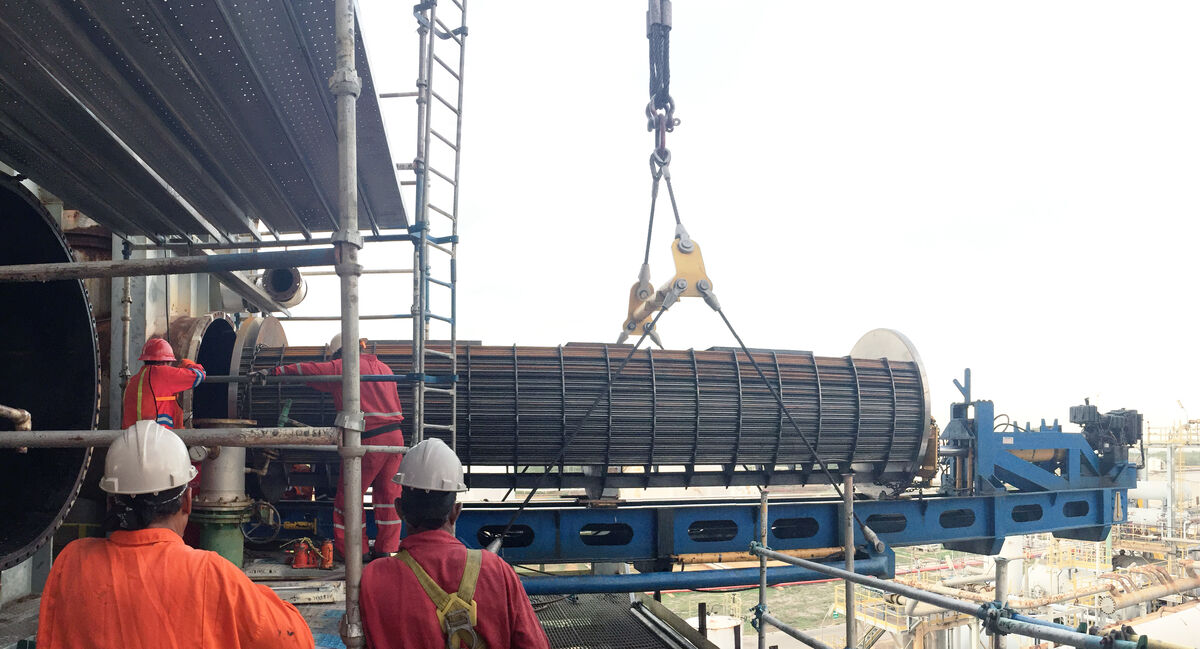

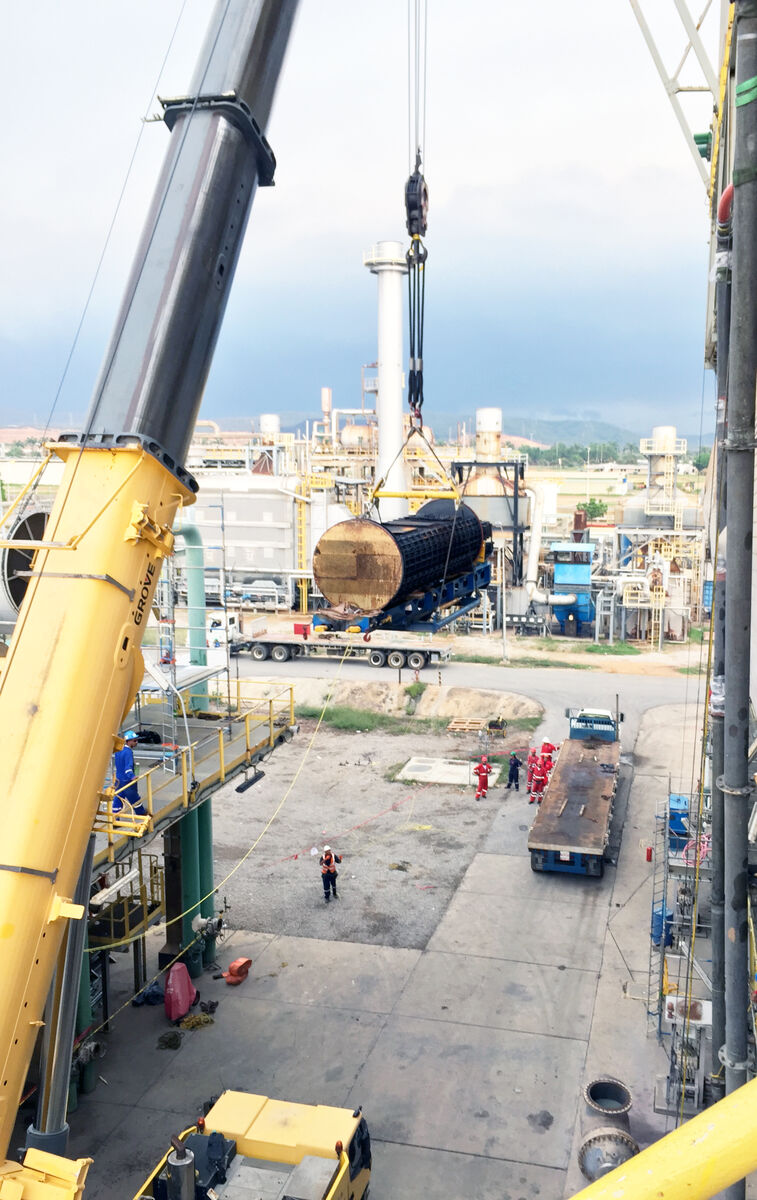

Tube Bundle Extractor
Aquadyne
The Tube Bundle Extractor is an autonomous hydraulic power unit specifically designed for critical heat exchanger maintenance. Its main function is the safe and efficient extraction and insertion of tube bundles. This equipment is essential for plant shutdowns and major maintenance, as it allows removing the tube bundle from the exchanger shell by applying controlled force, eliminating the need for risky manual methods or excessive brute force that could damage components.
Bidirectional Force
60.000 lbs
Maximum Load
30 Tons
Engine
Autonomous Diesel
Technical Specifications
Manufacturer: AQUADYNE, Inc.
Push/Pull Capacity: 60,000 lbs bidirectional
Maximum bundle diameter: Up to 80" (2.03 meters)
Load Capacity: Up to 30 Tons
Maximum Length: Bundles up to 24.6 feet (7.5 meters)
Equipment Weight: 14,500 lbs (6.6 Tons)
Dimensions: Total length of 10 meters
Operational Advantages
Total Autonomy: No external supply of air, hydraulic pressure or electricity required
Suitable for Classified Areas: Operates with Diesel engine designed for industrial zones with restrictions
Self-Balancing System: Allows performing the maneuver with a single crane
Facilitates deployment in remote sites or with limited services
Equipment in Operation Video
Image Gallery

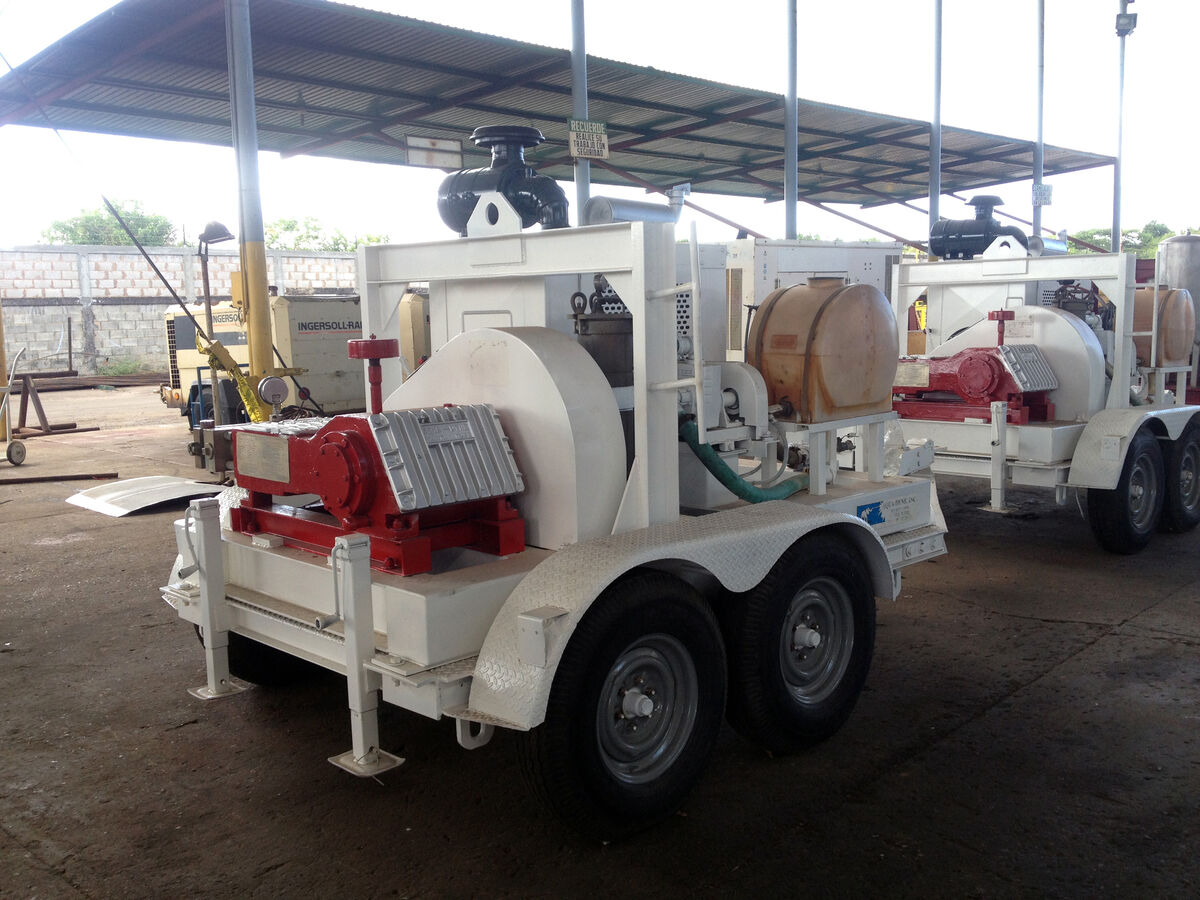

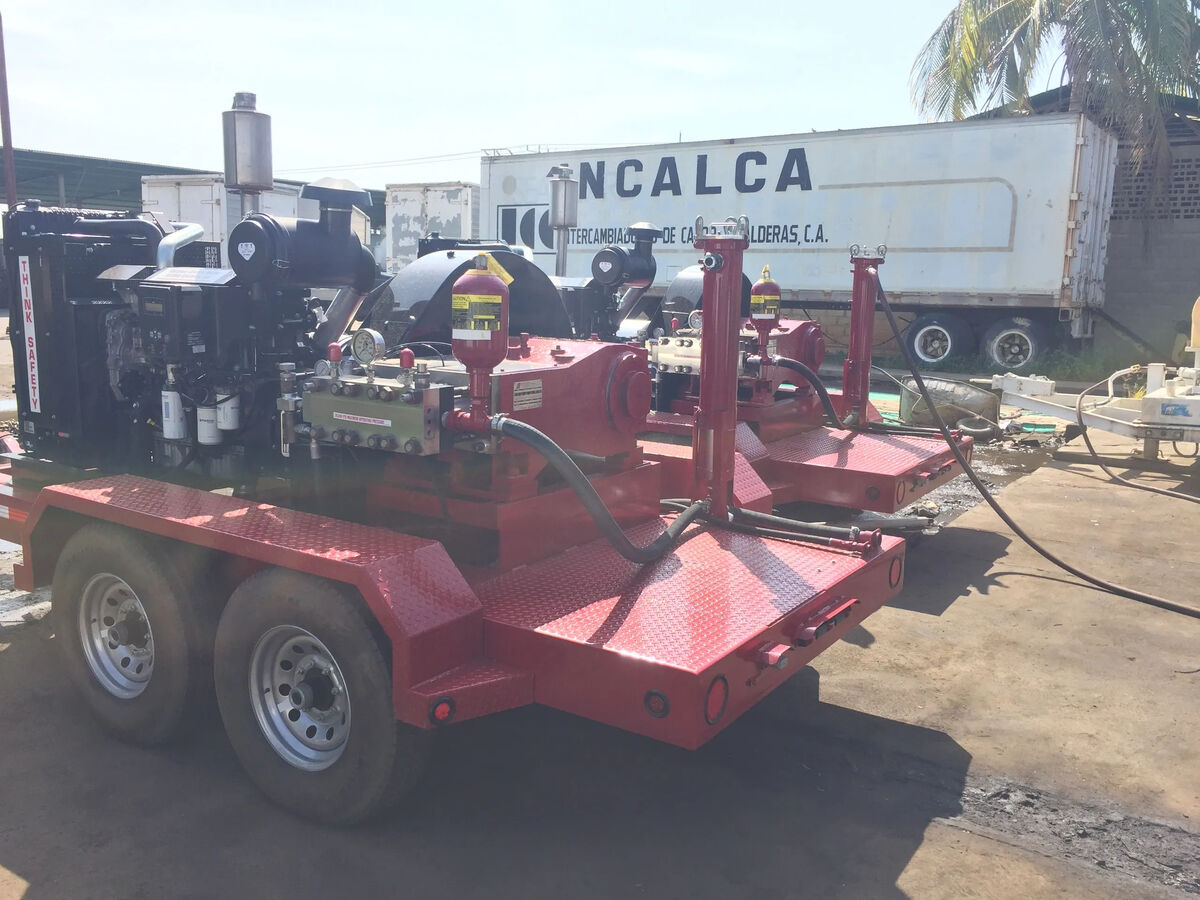

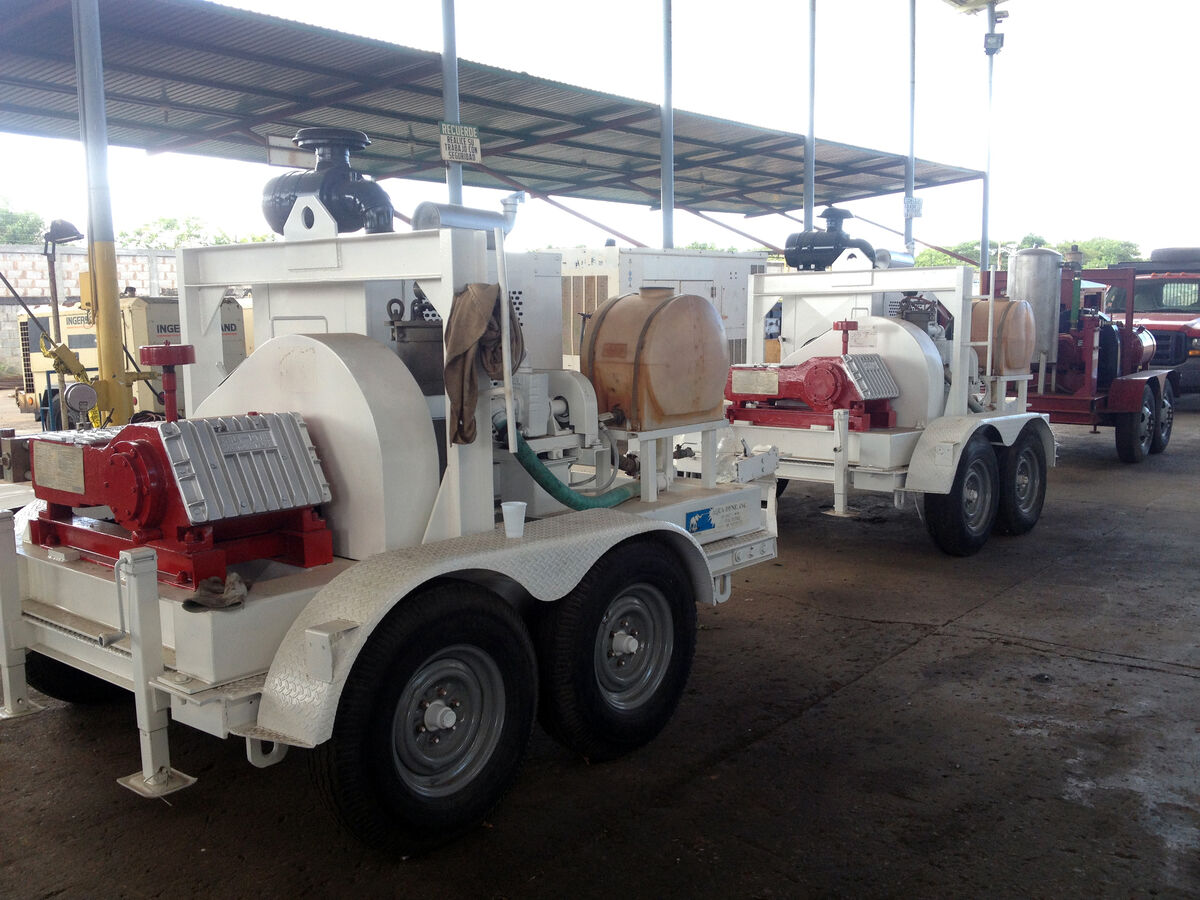

High Pressure Hydrojets (20,000 PSI)
Gardner Denver / Aquadyne
At INCALCA we have one of the most robust fleets in the market for industrial cleaning services, composed of 9 high-performance Hydrojet units. These units are designed to operate at extreme pressures of up to 20,000 PSI, offering effective solutions for hard material descaling, deep cleaning of tube bundles, tanks, and surface preparation.
Our availability of multiple units allows us to attend several work fronts simultaneously, guaranteeing fast response times during plant shutdowns and critical maintenance.
Available Fleet
9 Units
Maximum Pressure
20,000 PSI
Brands
Gardner Denver / Aquadyne
Technical Specifications & Accessories
Brands: Gardner Denver and Aquadyne (World leaders in high pressure technology)
Maximum Operating Pressure: Up to 20,000 PSI
Available Fleet: 7 Complete Units
Calibrated gauges with range up to 40,000 PSI
Foot Guns (actuator pedals) up to 20,000 PSI
Certified pressure water guns and rigid/flexible lances
High resistance hoses for 20,000 PSI
Specialized nozzles (rotary, fan, penetration)
Competitive Advantages
Massive Response Capacity: 9 units to attend multiple fronts simultaneously
High Safety Standards: 40,000 PSI gauges operating with margin
Certified Accessories: All work kit meets safety standards
Versatility: Nozzles adaptable to any cleaning configuration
Image Gallery
